| MODEL |
AP 40 |

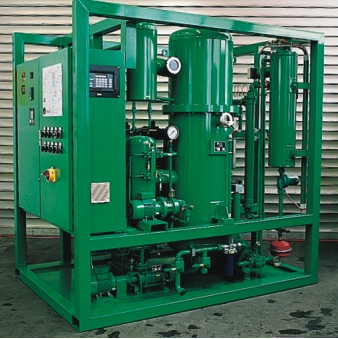

AP 60 |
| Oil throughput |
4000 l/h |
6000 l/h |
| Max. oil content of transformer |
20 m³ |
30 m³ |
| Initial moisture content of oil |
50 ppm |
50 ppm |
| Residual moisture content after 1 pass |
approx. 5 ppm |
approx. 5 ppm |
| Residual moisture content after several passes |
approx. 3 ppm |
approx. 3 ppm |
| Initial gas content of oil |
10 Vol. % |
10 Vol. % |
| Residual gas content after 1 pass |
< 0,2 Vol. % |
< 0,2 Vol. % |
| Residual gas content after several passes |
< 0,1 Vol. % |
< 0,1 Vol. % |
| Heating capacity of indirect electrical heating |
80 kW |
120 kW |
| Temperature difference at an inlet temp. of 20°C |
40 °C |
40 °C |
| Oil temperature adjustable |
RT - 80 °C |
RT - 80 °C |
| Pump speed of air cooled vacuum pump |
160 m³/h |
250 m³/h |
| Ultimate vacuum approx. |
1 mbar |
1 mbar |
| Filter fineness approx. |
5/1 micron |
5/1 micron |
| Connected load of equipment |
85 kVA |
150 kVA |
| |
|
|
| Design: Movable (T): |
|
|
| Length x Width x Height (mm) |
2000 x 1400 x 2400 |
1650 x 1100 x 2200 |
| Weight (kg) |
1700 |
2000 |
| |
|
|
| Design: Mobile ( R): |
|
|
| Height of rollers (mm) |
200 |
200 |
| Design: Mobile on trailer (H): |
|
|
| Casing with shaft (mm) |
2800 x 1600 x 2500 |
3500 x 1900 x 3000 |
| Admissible weight (kg) |
1300 |
2000 |
